A Brief Introduction to PyQt

PyQt is a Python binding of the Qt user interface library

PyQt is a set of Python bindings for The Qt cross-platform GUI toolkit. These bindings allow Python programmers to create GUI applications that run on Windows, MacOS X and Linux.

PyQt applications look and feel like native, but with all the power of the full Qt library available at their fingertips.

What can you do with PyQt?

Create sophisticated graphical user interfaces with Python.

Use Qt’s signal/slot mechanisms or Python’s own full-featured OO system to connect your functions to GUI events.

How do I start?

This workshop will walk you through the basics of how to create and deploy a GUI application with Python and PyQt.

We’ll cover getting an environment set up, learning about widgets, and what you need to know about events.

Installation

You should install pyqt5 onto your system inside a virtual environment. You can do that in PyCharm or inside a virtual environment.

If you don’t care about conflicting packages, you can install like this:

apt install python3-pyqt5

A basic program in PyQt5

import sys
from PyQt5.QtWidgets import QApplication, QWidget

def show_w():
    # All PyQt5 applications must create an application (Application) object.
    # The argument is a list of arguments from the command line. (sys.argv)
     app = QApplication(sys.argv)

    # The Qwidget component is the base class for all user interface classes in PyQt5. We give QWidget with a default constructor.
    w = QWidget()

    # The resize() method resizes the widget component. It is now 500px wide and 500px high.
    w.resize(500, 500)

    # The move() method moves the widget component to a location that is the x=500,y=200 coordinates on the screen.
    w.move(500, 100)

    # Sets the title of the window. This title is displayed in the title bar.
    w.setWindowTitle('Simple')

    # show() method displays the widget on the screen. a widget object is created in memory for the first time here and is displayed on the screen afterwards.
    w.show()

    # The application enters the main loop. At this point, event handling begins to execute. The main loop is used to receive events triggered from the window
    sys.exit(app.exec_())

    sys.exit()

if __name__ == '__main__':
    show_w()

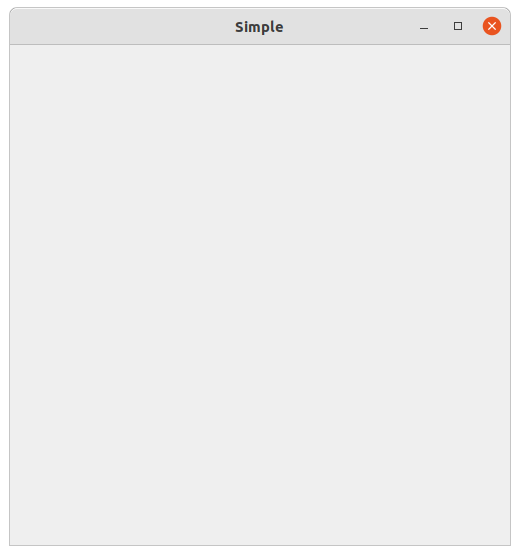

Run the program and you should see an empty window like this. The size, position and title are all defined in the code above.

assets/img/uploads/pyqt-window.png
You may like: Create Desktop Apps with Python PyQt5

Button

Example program: button, window closing, tooltip. This is a simple example for pyqt QPushButton. You can set the buttons text in the constructor QPushButton(..). Then set the tooltip with the first paramater setToolTip(..).

import sys
from PyQt5.QtWidgets import (QWidget, QToolTip, QDesktopWidget, QMessageBox,QTextEdit,QLabel,
    QPushButton, QApplication,QMainWindow, QAction, qApp, QHBoxLayout, QVBoxLayout,QGridLayout,
    QLineEdit)
from PyQt5.QtGui import QFont,QIcon
from PyQt5.QtCore import QCoreApplication

class PromptText(QWidget):

    def __init__(self):
        super(). __init__()
        self.initUI()

    def initUI(self):
        QToolTip.setFont(QFont('SansSerif', 10))
        # This static method sets the font used for the prompt box.
        # Here the SansSerif font of size 10px is used.
        self.setToolTip('This is a QWidget widget') # Call the setTooltip() method to create the tip box.
        # You can use rich text formatting in the prompt box.
        btn = QPushButton('Button', self) # Create button
        btn.setToolTip('This is a QPushButton widget') # Set the button prompt box
        btn.resize(btn.sizeHint()) # change the size of the button
        btn.move(100, 100) # move the position of the button
        self.setGeometry(300, 100, 300, 300)
        self.setWindowTitle('Tooltips')
        self.show()


if __name__ == '__main__':
    app = QApplication(sys.argv)
    ex = PromptText()
    sys.exit(app.exec_())

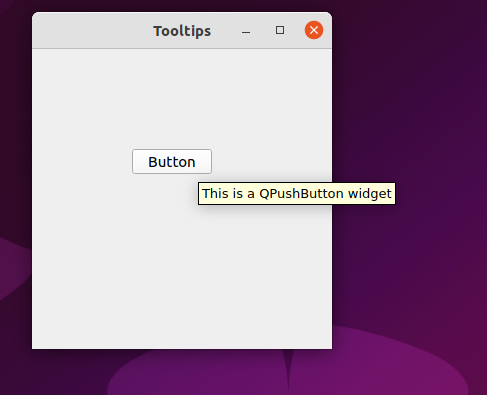

This program will create a window with a button, on mouseover it will show a little tooltip with the text.

pyqt button tooltip

Button click

The program below closes if you click on the quit button. The QPushButton class is creates a button and it’s a class that uses the QWidget class.

You can connect the button click to a method by calling .clicked.connect().

import sys
from PyQt5.QtWidgets import (QWidget, QToolTip, QDesktopWidget, QMessageBox,QTextEdit,QLabel,
    QPushButton, QApplication,QMainWindow, QAction, qApp, QHBoxLayout, QVBoxLayout,QGridLayout,
    QLineEdit)
from PyQt5.QtGui import QFont,QIcon
from PyQt5.QtCore import QCoreApplication


## CloseWindow
class CloseW(QWidget):

   def __init__(self):
       super(). __init__()
       self.initUI()

   def initUI(self):
       qbtn = QPushButton('Quit', self)
       # A button is created. A button is an instance of the QPushButton class.
       # The first argument to the constructor is the text of the label displayed on the button.
       # The second argument is the parent component.
       # The parent component is the Example component, which inherits from the QWiget class.

       # Connect button click to a function
       qbtn.clicked.connect(QCoreApplication.instance().quit)

       # Resize button
       qbtn.resize(qbtn.sizeHint())

       # Position button
       qbtn.move(50, 50)

       # Set window coordinates and title
       self.setGeometry(300, 100, 200, 100)
       self.setWindowTitle('exercise')

       self.show()

if __name__ == '__main__':
   app = QApplication(sys.argv)
   ex = CloseW()
   sys.exit(app.exec_())

Click the quit button to exit the program

Messagebox

You can easily show a messagebox with PyQt. The example below shows the message box just before closing the window (not the button).

import sys
from PyQt5.QtWidgets import (QWidget, QToolTip, QDesktopWidget, QMessageBox,QTextEdit,QLabel,
    QPushButton, QApplication,QMainWindow, QAction, qApp, QHBoxLayout, QVBoxLayout,QGridLayout,
    QLineEdit)
from PyQt5.QtGui import QFont,QIcon
from PyQt5.QtCore import QCoreApplication


## Message Box
class MessageBox(QWidget):

    def __init__(self):
        super(). __init__()
        self.initUI()

    def initUI(self):
        qbtn = QPushButton('Quit', self) # A button is created. A button is an instance of the QPushButton class.
        # The first argument to the constructor is the text of the label displayed on the button. The second argument is the parent component.
        # The parent component is the Example component, which inherits from the QWiget class.
        qbtn.clicked.connect(QCoreApplication.instance().quit)
        qbtn.resize(qbtn.sizeHint())
        qbtn.move(50, 50)
        self.setGeometry(300, 100, 200, 100)
        self.setWindowTitle('excise')
        self.show()

    def closeEvent(self, event):

        reply = QMessageBox.question(self, 'Message',
                                     "Are you sure to quit?", QMessageBox.Yes |
                                     QMessageBox.No, QMessageBox.No)
        if reply == QMessageBox.Yes:
            event.accept()
        else:
            event.ignore()


if __name__ == '__main__':
   app = QApplication(sys.argv)
   ex = MessageBox()
   sys.exit(app.exec_())

The program shows this messagebox when you close it:

QMessagebox python messagebox

Menubar

The program below creates a menu bar on the window. If you click on file exit it will close the program.

import sys
from PyQt5.QtWidgets import (QWidget, QToolTip, QDesktopWidget, QMessageBox,QTextEdit,QLabel,
    QPushButton, QApplication,QMainWindow, QAction, qApp, QHBoxLayout, QVBoxLayout,QGridLayout,
    QLineEdit)
from PyQt5.QtGui import QFont,QIcon
from PyQt5.QtCore import QCoreApplication

class MenuBar(QMainWindow):
    def __init__(self):
        super().__init__()

        self.initUI()

    def initUI(self):
        exitAction = QAction(QIcon('icon.jpg'), 'Exit', self)
        exitAction.setShortcut('Ctrl+Q')
        exitAction.setStatusTip('Exit application')
        exitAction.triggered.connect(qApp.quit)

        self.statusBar()

        menubar = self.menuBar()
        fileMenu = menubar.addMenu('File')
        fileMenu.addAction(exitAction)

        self.setGeometry(300, 300, 300, 200)
        self.setWindowTitle('Menubar')
        self.show()


if __name__ == '__main__':
    app = QApplication(sys.argv)
    ex = MenuBar()
    sys.exit(app.exec_())

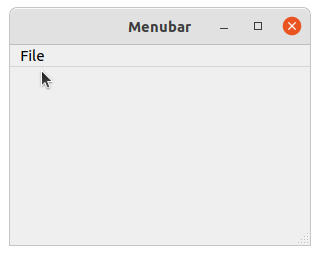

Running the program shows something like this:

pyqt menubar

Label

QLabel demonstration, put some on the window. The QLabel widget can show text. You can move the widget arround by calling .move().

import sys
from PyQt5.QtWidgets import (QWidget, QToolTip, QDesktopWidget, QMessageBox,QTextEdit,QLabel,
    QPushButton, QApplication,QMainWindow, QAction, qApp, QHBoxLayout, QVBoxLayout,QGridLayout,
    QLineEdit)
from PyQt5.QtGui import QFont,QIcon
from PyQt5.QtCore import QCoreApplication

class AbsPosition(QWidget):
    def __init__(self):
        super().__init__()

        self.initUI()

    def initUI(self):
        lbl1 = QLabel('Coffee', self)
        lbl1.move(20, 10)

        lbl2 = QLabel('Tea', self)
        lbl2.move(20, 40)

        lbl3 = QLabel('Milk', self)
        lbl3.move(20, 70)

        self.setGeometry(300, 300, 250, 150)
        self.setWindowTitle('Labels')
        self.show()

if __name__ == '__main__':
    app = QApplication(sys.argv)
    ex = AbsPosition()
    sys.exit(app.exec_())

The QLabel widgets are shown below. The text is shown onto the window.

qlabel python
